Lexus NX: Drive Motor "A" Control Module (P0A1B-505,P0A1B-806)
DTC SUMMARY
MALFUNCTION DESCRIPTION
These DTCs indicate that a large current flowed in the inverter for the motor. The cause of this malfunction may be one of the following:
- Internal circuit malfunction in the inverter for the motor
- Malfunction in ECU that controls the inverter
DESCRIPTION
For a description of the inverter.
Click here .gif)
If the motor inverter overheats, has a circuit malfunction or internal short, the inverter transmits this information to the MG ECU via the motor inverter fail signal line. If an abnormal amount of current flows through the motor inverter, the MG ECU detects it and sends a signal to inform the hybrid vehicle control ECU of the malfunction.
HINT:
The term "drive motor A" indicates the motor (MG2).
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate |
|---|---|---|---|---|---|
| P0A1B-505 | Drive Motor "A" Control Module | Motor inverter fail signal detected (overcurrent due to MG ECU malfunction)* (1 trip detection logic) | Inverter with converter assembly | Comes on | Master Warning Light: Comes on |
| P0A1B-806 | Drive Motor "A" Control Module | Abnormal motor (MG2) current value detected (MG ECU malfunction)* (1 trip detection logic) | Inverter with converter assembly | Comes on | Master Warning Light: Comes on |
*: The MG ECU, which is built into the inverter with converter assembly, is suspected to be the main cause of the malfunction.
MONITOR DESCRIPTION
P0A1B (INF 505):
If excessive current flows through the motor inverter due to an internal short, the motor inverter will transmit an inverter fail signal to the MG ECU. The MG ECU will send information about the malfunction to the hybrid vehicle control ECU. Upon receiving this information, the hybrid vehicle control ECU will illuminate the MIL and store a DTC.
P0A1B (INF 806):
The MG ECU monitors the motor inverter electric current. If the current exceeds the threshold level for a specified period of time, the hybrid vehicle control ECU will illuminate the MIL and store a DTC.
MONITOR STRATEGY
| Related DTCs | P0A1B (INF 505): MFIV detection (overcurrent malfunction) P0A1B (INF 806): Motor inverter abnormal current |
| Required sensors/components | Motor inverter |
| Frequency of operation | Continuous |
| Duration | TMC's intellectual property |
| MIL operation | 1 driving cycle |
| Sequence of operation | None |
TYPICAL ENABLING CONDITIONS
| The monitor will run whenever the following DTCs are not stored | TMC's intellectual property |
| Other conditions belong to TMC's intellectual property | - |
TYPICAL MALFUNCTION THRESHOLDS
| TMC's intellectual property | - |
COMPONENT OPERATING RANGE
| Hybrid vehicle control ECU | DTC P0A1B (INF 505/806) is not detected |

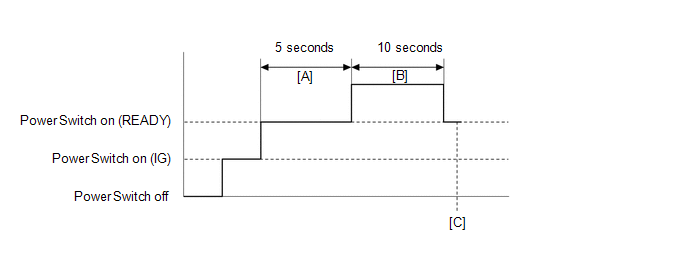

CONFIRMATION DRIVING PATTERN
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for 30 seconds or more.
- Turn the power switch on (IG) and turn the Techstream on.
- Turn the power switch on (READY).
-
With the shift lever in P, wait for 5 seconds or more. [A]
HINT:
Check that there are no abnormalities (abnormal sounds, coolant leaks, etc.).
- Perform a road test according to the freeze frame data item "Vehicle Spd" for approximately 10 minutes. [B]
- Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [C]
-
Read the current DTCs.
HINT:
- If a current DTC is output, the system is malfunctioning.
- If current DTCs are not output, perform the following steps to check for permanent DTCs.
- Check that the permanent DTCs are cleared.
- If the permanent DTCs are not cleared, perform a universal trip, and then check for permanent DTCs again.
CAUTION / NOTICE / HINT
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
-
After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
Click here
HINT:
Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.
NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Click here
HINT:
After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.
- Turn the power switch on (READY) and wait for 5 seconds or more.
- Perform a road test according to the freeze frame data item "Vehicle Spd" for approximately 10 minutes.
PROCEDURE
| 1. | CHECK DTC OUTPUT (HYBRID CONTROL) |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(d) Check for DTCs.
Powertrain > Hybrid Control > Trouble CodesNOTICE:
- If P0A78-202 is output, troubleshoot it first. After completing the troubleshooting for P0A78-202, perform troubleshooting for this DTC.
- Parts repaired or replaced during troubleshooting for P0A78-202 do not need to be re-inspected in this diagnostic procedure.
(e) Turn the power switch off.
| P0A78-202 is also output. | .gif) | GO TO DTC CHART (P0A78-202) |
|
.gif)
| 2. | CHECK DTC OUTPUT (HYBRID CONTROL) |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(d) Check for DTCs.
Powertrain > Hybrid Control > Trouble CodesHINT:
- If P0A78-202 was not output in step 1 of this diagnostic procedure, check Table 1 below.
- If P0A78-202 was output in step 1 of this diagnostic procedure, diagnose that DTC first, then check Table 2 below.
| Result | Proceed to |
|---|---|
| P0A1B-505 or 806 only is output, or DTCs except the ones in the tables below are also output. | A |
| Any of the following DTCs are also output. | B |
Table 1:
| Malfunction Content | Relevant DTC | |
|---|---|---|
| Microcomputer malfunction | P0A1A-151, 166, 658, 791 | Generator Control Module |
| P0A1B-198, 786, 794 | Drive Motor "A" Control Module | |
| P0A1C-709, 710, 713, 797 | Drive Motor "B" Control Module | |
| P0A1D (all INF codes)*1 | Hybrid Powertrain Control Module | |
| P1C2A-155 | Generator A/D Converter Circuit | |
| P1C2B-192 | Drive Motor "A" A/D Converter Circuit | |
| P1C2C-706 | Drive Motor "B" A/D Converter Circuit | |
| P1CA6-156 | Generator Control Module Malfunction | |
| P1CA7-193 | Drive Motor Control Module Malfunction | |
| P1CA8-708 | Drive Motor "B" Control Module Malfunction | |
| P1CAC-200 | Generator Position Sensor Angle Malfunction | |
| P1CAD-168 | Drive Motor "A" Position Sensor Angle Malfunction | |
| P1CAE-715 | Drive Motor "B" Position Sensor Angle Malfunction | |
| P1CAF-792 | Generator Position Sensor REF Signal Cycle Malfunction | |
| P1CB0-795 | Drive Motor "A" Position Sensor REF Signal Cycle Malfunction | |
| P1CB1-798 | Drive Motor "B" Position Sensor REF Signal Cycle Malfunction | |
| P1CB2-793 | Generator Position Sensor REF Signal Stop Malfunction | |
| P1CB3-796 | Drive Motor "A" Position Sensor REF Signal Stop Malfunction | |
| P1CB4-799 | Drive Motor "B" Position Sensor REF Signal Stop Malfunction | |
| P3133-659 | Communication Error from Generator to Drive Motor "A" | |
| P3134-661 | Communication Error from Drive Motor "A" to Generator | |
| Power source circuit malfunction | P06B0-163 | Sensor Power Supply "A" Circuit / Open |
| P06D6-511 | Sensor Reference Voltage "F" Circuit / Open | |
| P06E6-164 | Sensor Power Supply "C" Circuit / Open | |
| P1C73-512 | Sensor Standard Voltage "F" Circuit / Open | |
| Sensor and actuator circuit malfunction | P0A3F-243 | Drive Motor "A" Position Sensor Circuit |
| P0A40-500 | Drive Motor "A" Position Sensor Circuit Range / Performance | |
| P0A41-245 | Drive Motor "A" Position Sensor Circuit Low | |
| P0A45-669 | Drive Motor "B" Position Sensor Circuit | |
| P0A46-671 | Drive Motor "B" Position Sensor Circuit Range / Performance | |
| P0A47-670 | Drive Motor "B" Position Sensor Circuit Low | |
| P0A4B-253 | Generator Position Sensor Circuit | |
| P0A4C-513 | Generator Position Sensor Circuit Range / Performance | |
| P0A4D-255 | Generator Position Sensor Circuit Low | |
| P0BEA-290 | Drive Motor "A" Phase V Current Sensor Circuit Range / Performance | |
| P0BEE-298 | Drive Motor "A" Phase W Current Sensor Circuit Range / Performance | |
| P0BF6-683 | Drive Motor "B" Phase V Current Sensor Circuit Range / Performance | |
| P0BFA-685 | Drive Motor "B" Phase W Current Sensor Circuit Range / Performance | |
| P0E05-328 | Generator Phase V Current Sensor Circuit Range / Performance | |
| P0E09-336 | Generator Phase W Current Sensor Circuit Range / Performance | |
| P1C3C-294 | Drive Motor "A" Phase V Current Sensor Correlation | |
| P1C3D-302 | Drive Motor "A" Phase W Current Sensor Correlation | |
| P1C3E-333 | Generator Phase V Current Sensor Correlation | |
| P1C3F-341 | Generator Phase W Current Sensor Correlation | |
| P1C4A-288 | Drive Motor "A" Phase V Current Sensor Sub Circuit Range / Performance | |
| P1C4F-296 | Drive Motor "A" Phase W Current Sensor Sub Circuit Range / Performance | |
| P1C54-326 | Generator Phase V Current Sensor Sub Circuit Range / Performance | |
| P1C59-334 | Generator Phase W Current Sensor Sub Circuit Range / Performance | |
| P1C6D-501 | Drive Motor "A" Phase V Current Sensor Offset Range / Performance | |
| P1C6E-502 | Drive Motor "A" Phase W Current Sensor Offset Range / Performance | |
| P1C6F-688 | Drive Motor "B" Phase V Current Sensor Offset Range / Performance | |
| P1C70-689 | Drive Motor "B" Phase W Current Sensor Offset Range / Performance | |
| P1C71-515 | Generator Phase V Current Sensor Offset Range / Performance | |
| P1C72-516 | Generator Phase W Current Sensor Offset Range / Performance | |
| P33C1-684 | Drive Motor "B" Phase V Current Sensor Sub Circuit Range / Performance | |
| P33C6-686 | Drive Motor "B" Phase W Current Sensor Sub Circuit Range / Performance | |
| P33D8-677 | Drive Motor "B" Phase V Current Sensor Correlation | |
| P33D9-678 | Drive Motor "A" Phase W Current Sensor Correlation | |
| System malfunction | P0C76-523 | Hybrid Battery System Discharge Time Too Long |
| P0D2E-586 | Drive Motor "A" Inverter Voltage Sensor Circuit Range / Performance | |
| P0D2F-266 | Drive Motor "A" Inverter Voltage Sensor Circuit Low | |
| P0D30-267 | Drive Motor "A" Inverter Voltage Sensor Circuit High | |
| P0E32-585 | DC/DC Converter Voltage Sensor "A" Range / Performance | |
| P0E33-589 | DC/DC Converter Voltage Sensor "A" Low | |
| P0E34-590 | DC/DC Converter Voltage Sensor "A" High | |
| P1C2D-587 | Hybrid Battery Voltage / DC/DC Converter Voltage Correlation | |
Table 2:
| Malfunction Content | Relevant DTC | |
|---|---|---|
| Microcomputer malfunction | P0A1A-151, 166, 658, 791 | Generator Control Module |
| P0A1B-198, 786, 794 | Drive Motor "A" Control Module | |
| P0A1C-709, 710, 713, 797 | Drive Motor "B" Control Module | |
| P0A1D (all INF codes)*1 | Hybrid Powertrain Control Module | |
| P1C2A-155 | Generator A/D Converter Circuit | |
| P1C2B-192 | Drive Motor "A" A/D Converter Circuit | |
| P1C2C-706 | Drive Motor "B" A/D Converter Circuit | |
| P1CA6-156 | Generator Control Module Malfunction | |
| P1CA7-193 | Drive Motor Control Module Malfunction | |
| P1CA8-708 | Drive Motor "B" Control Module Malfunction | |
| P1CAC-200 | Generator Position Sensor Angle Malfunction | |
| P1CAD-168 | Drive Motor "A" Position Sensor Angle Malfunction | |
| P1CAE-715 | Drive Motor "B" Position Sensor Angle Malfunction | |
| P1CAF-792 | Generator Position Sensor REF Signal Cycle Malfunction | |
| P1CB0-795 | Drive Motor "A" Position Sensor REF Signal Cycle Malfunction | |
| P1CB1-798 | Drive Motor "B" Position Sensor REF Signal Cycle Malfunction | |
| P1CB2-793 | Generator Position Sensor REF Signal Stop Malfunction | |
| P1CB3-796 | Drive Motor "A" Position Sensor REF Signal Stop Malfunction | |
| P1CB4-799 | Drive Motor "B" Position Sensor REF Signal Stop Malfunction | |
| P3133-659 | Communication Error from Generator to Drive Motor "A" | |
| P3134-661 | Communication Error from Drive Motor "A" to Generator | |
| Power source circuit malfunction | P06B0-163 | Sensor Power Supply "A" Circuit / Open |
| P06D6-511 | Sensor Reference Voltage "F" Circuit / Open | |
| P06E6-164 | Sensor Power Supply "C" Circuit / Open | |
| P1C73-512 | Sensor Standard Voltage "F" Circuit / Open | |
| Sensor and actuator circuit malfunction | P0A3F-243 | Drive Motor "A" Position Sensor Circuit |
| P0A40-500 | Drive Motor "A" Position Sensor Circuit Range / Performance | |
| P0A41-245 | Drive Motor "A" Position Sensor Circuit Low | |
| P0A45-669 | Drive Motor "B" Position Sensor Circuit | |
| P0A46-671 | Drive Motor "B" Position Sensor Circuit Range / Performance | |
| P0A47-670 | Drive Motor "B" Position Sensor Circuit Low | |
| P0A4B-253 | Generator Position Sensor Circuit | |
| P0A4C-513 | Generator Position Sensor Circuit Range / Performance | |
| P0A4D-255 | Generator Position Sensor Circuit Low | |
| P0BF6-683 | Drive Motor "B" Phase V Current Sensor Circuit Range / Performance | |
| P0BFA-685 | Drive Motor "B" Phase W Current Sensor Circuit Range / Performance | |
| P0E05-328 | Generator Phase V Current Sensor Circuit Range / Performance | |
| P0E09-336 | Generator Phase W Current Sensor Circuit Range / Performance | |
| P1C3C-294 | Drive Motor "A" Phase V Current Sensor Correlation | |
| P1C3D-302 | Drive Motor "A" Phase W Current Sensor Correlation | |
| P1C3E-333 | Generator Phase V Current Sensor Correlation | |
| P1C3F-341 | Generator Phase W Current Sensor Correlation | |
| P1C54-326 | Generator Phase V Current Sensor Sub Circuit Range / Performance | |
| P1C59-334 | Generator Phase W Current Sensor Sub Circuit Range / Performance | |
| P1C6F-688 | Drive Motor "B" Phase V Current Sensor Offset Range / Performance | |
| P1C70-689 | Drive Motor "B" Phase W Current Sensor Offset Range / Performance | |
| P1C71-515 | Generator Phase V Current Sensor Offset Range / Performance | |
| P1C72-516 | Generator Phase W Current Sensor Offset Range / Performance | |
| P33C1-684 | Drive Motor "B" Phase V Current Sensor Sub Circuit Range / Performance | |
| P33C6-686 | Drive Motor "B" Phase W Current Sensor Sub Circuit Range / Performance | |
| P33D8-677 | Drive Motor "B" Phase V Current Sensor Correlation | |
| P33D9-678 | Drive Motor "A" Phase W Current Sensor Correlation | |
| System malfunction | P0C76-523 | Hybrid Battery System Discharge Time Too Long |
| P0D2E-586 | Drive Motor "A" Inverter Voltage Sensor Circuit Range / Performance | |
| P0D2F-266 | Drive Motor "A" Inverter Voltage Sensor Circuit Low | |
| P0D30-267 | Drive Motor "A" Inverter Voltage Sensor Circuit High | |
| P0E32-585 | DC/DC Converter Voltage Sensor "A" Range / Performance | |
| P0E33-589 | DC/DC Converter Voltage Sensor "A" Low | |
| P0E34-590 | DC/DC Converter Voltage Sensor "A" High | |
| P1C2D-587 | Hybrid Battery Voltage / DC/DC Converter Voltage Correlation | |
HINT:
- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.
-
P0A1B-505 or P0A1B-806 may be output as a result of the malfunction indicated by the DTCs above.
- The chart above is listed in inspection order of priority.
- Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)
(e) Turn the power switch off.
| A | | REPLACE INVERTER WITH CONVERTER ASSEMBLY |
| B | | GO TO DTC CHART (HYBRID CONTROL SYSTEM) |
READ NEXT:
Drive Motor "A" Control Module (P0A1B-547,P0A1C-124)
DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs indicate that an overvoltage in the inverter has occurred. The cause of this malfunction may be one of the following: Internal inverter malfunction
In
Drive Motor "A" Control Module (P0A1B-554,P0A1C-169)
DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs indicate that a large current flowed in the boost converter. The cause of this malfunction may be one of the following: Internal inverter malfunction
Drive Motor "B" Control Module (P0A1C-118)
DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs indicate that an overvoltage in the inverter has occurred. The cause of this malfunction may be one of the following: Internal inverter malfunction
In
SEE MORE:
Installation
INSTALLATION PROCEDURE 1. INSTALL MULTIPLEX NETWORK BODY ECU (MAIN BODY ECU) NOTICE:
Make sure that no foreign matter gets on the connecting surfaces.
Do not touch the ECU connector.
(a) Insert the multiplex network body ECU (main body ECU) up to the position where it contacts the housing si
"No GPS signal" mark is displayed
CAUTION / NOTICE / HINT NOTICE: When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
A communication malfunction DTC may be stored.
The radio receiver assembly may not
