Lexus NX: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.
-
A bolt without a torque specification is shown in the standard bolt chart.
Click here
.gif)
PROCEDURE
1. INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH

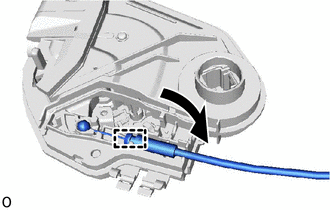

| (a) Attach the clamp to install the rear door inside locking cable assembly LH to the rear door lock assembly LH. |
|
2. INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH

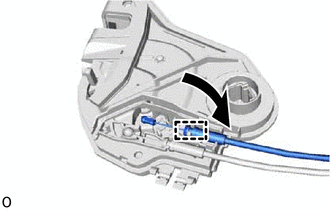

| (a) Attach the clamp to install the rear door lock remote control cable assembly LH to the rear door lock assembly LH. |
|
3. INSTALL REAR DOOR LOCK COVER SUB-ASSEMBLY LH
(a) Attach the 2 guides.
(b) Attach the 2 claws to install the rear door lock cover sub-assembly LH.
4. INSTALL REAR DOOR LOCK ASSEMBLY LH
NOTICE:
- When reusing the removed rear door lock assembly, replace the door lock wiring harness seal on the connector with a new one.
- Do not allow grease or dust to contact the door lock wiring harness seal surface of the connector.
- Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water intrusion. This may result in a malfunction of the rear door lock assembly.
(a) Apply MP grease to the sliding parts of the rear door lock assembly LH.
(b) Install a new door lock wiring harness seal to the rear door lock assembly LH.

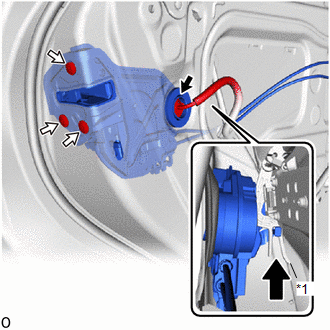

| *1 | Release Plate |
.png) | Upward |
(c) Insert the rear door lock assembly LH into the rear door outside handle frame release plate, and set it to the rear door panel.
(d) Make sure that the rear door outside handle frame release plate is securely connected to the rear door lock assembly LH.
(e) Using a T30 "TORX" socket wrench, install the rear door lock assembly LH with the 3 screws.
Torque:
5.0 N·m {51 kgf·cm, 44 in·lbf}
(f) Connect the connector.
5. INSTALL REAR DOOR GLASS SUB-ASSEMBLY LH
Click here
6. INSTALL REAR DOOR REAR GUIDE SEAL LH
Click here
7. INSTALL REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY LH
Click here
8. INSTALL REAR DOOR GLASS RUN LH
Click here
9. INSTALL REAR DOOR SERVICE HOLE COVER LH
Click here
10. INSTALL REAR DOOR ARMREST SET BRACKET LH
Click here
11. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP LH
Click here
12. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Click here
13. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
Click here
14. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH
Click here
15. INSTALL REAR DOOR TRIM COVER LH
Click here
16. INSTALL DECK FLOOR BOX LH
Click here
17. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
18. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Click here
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
19. INSTALL REAR DECK FLOOR BOX
Click here
20. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
Click here
21. INITIALIZE CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
22. CHECK POWER WINDOW CONTROL SYSTEM
Click here
23. CHECK POWER DOOR LOCK CONTROL SYSTEM
Click here
