Lexus NX: Installation

INSTALLATION

PROCEDURE

1. INSTALL THEFT WARNING SIREN ASSEMBLY

NOTICE:

Do not reuse parts if dropped or subjected to any strong impact.

(a) Connect the connector.

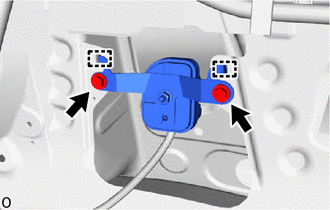

(b) Temporarily install the theft warning siren assembly by attaching the 2 guides of the theft warning siren assembly to the vehicles.

(c) Install the 2 bolts.

2. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

Click here

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

Click here

4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

Click here

5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

Click here

6. INSTALL ROPE HOOK ASSEMBLY

Click here

7. INSTALL UPPER DECK TRIM SIDE BOARD RH

Click here

8. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

Click here

9. INSTALL REAR DOOR SCUFF PLATE RH

Click here

10. INSTALL REAR FLOOR FINISH PLATE

Click here

11. INSTALL NO. 2 TOOL BOX SUB-ASSEMBLY

Click here

12. INSTALL NO. 1 TOOL BOX SUB-ASSEMBLY

Click here

13. INSTALL DECK FLOOR BOX RH

Click here

14. INSTALL DECK FLOOR BOX LH

Click here

15. INSTALL SPARE TIRE

Click here

16. INSTALL REAR DECK FLOOR BOX

Click here

17. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY

Click here

18. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY

Click here

19. INSTALL DECK BOARD ASSEMBLY

Click here

20. INSTALL TONNEAU COVER ASSEMBLY

Click here

21. INSTALL REAR SEAT ASSEMBLY (for Power Seat)

Click here

22. INSTALL REAR SEAT ASSEMBLY (for Manual Seat)

Click here
