Lexus NX: Open in Outer Mirror Indicator(Slave) (C1AB5)

DESCRIPTION

This DTC is stored when the blind spot monitor sensor RH detects an open in the outer rear view mirror indicator RH.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

C1AB5

Open in Outer Mirror Indicator(Slave)

Both of the following conditions are met:
  • The blind spot monitor main switch (combination switch assembly) is on.
  • The current flowing to the indicator is below a specified value when indicator operation voltage is being sent to the indicator.
  • Outer mirror RH (outer rear view mirror indicator RH)
  • Outer mirror retractor RH
  • Harness or connector
  • Blind spot monitor sensor RH
  • Outer mirror control ECU assembly RH

-

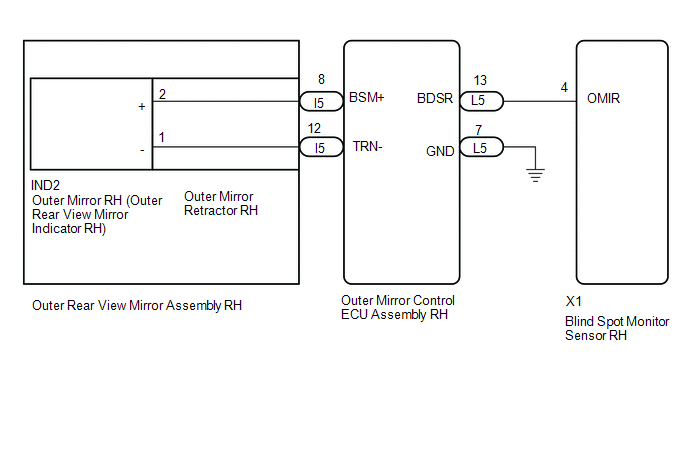

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

When checking for DTCs, make sure that the blind spot monitor main switch (combination switch assembly) is on.

PROCEDURE

1.

CHECK DTC

(a) Clear the DTCs.

Click here

Body Electrical > Blind Spot Monitor Slave > Clear DTCs

(b) Recheck for DTCs and check if the same DTC is output again.

Body Electrical > Blind Spot Monitor Slave > Trouble Codes

OK:

DTC C1AB5 is not output.

OK

USE SIMULATION METHOD TO CHECK

NG

2.

CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - OUTER MIRROR CONTROL ECU ASSEMBLY RH AND BODY GROUND)

(a) Disconnect the X1 blind spot monitor sensor RH connector.

(b) Disconnect the L5 outer mirror control ECU assembly RH connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

X1-4 (OMIR) - L5-13 (BDSR)

Always

Below 1 Ω

L5-7 (GND) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

INSPECT OUTER MIRROR CONTROL ECU ASSEMBLY RH

(a) Remove the outer mirror control ECU assembly RH.

Click here

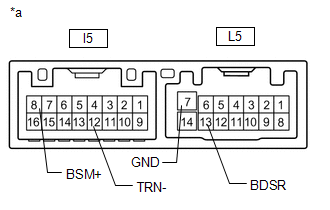

*a

Component without harness connected

(Outer Mirror Control ECU Assembly RH)

(b) Disconnect the outer rear view mirror assembly RH connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L5-13 (BDSR) - l5-8 (BSM+)

Always

Below 1 Ω

L5-7 (GND) - l5-12 (TRN-)

Always

Below 1 Ω

NG

REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY RH

OK

4.

CHECK OUTER REAR VIEW MIRROR ASSEMBLY RH

(a) Disconnect the l5 outer mirror control ECU assembly RH connector.

(b) Disconnect the IND2 outer mirror RH connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

l5-8 (BSM+) - IND2-2 (+)

Always

Below 1 Ω

l5-12 (TRN-) - IND2-1 (-)

Always

Below 1 Ω

NG

REPLACE OUTER MIRROR RETRACTOR RH

OK

5.

INSPECT OUTER MIRROR RH

(a) Replace the outer mirror RH.

Click here

(b) Inspect the outer rear view mirror indicator RH on the outer mirror RH.

Click here

OK

REPLACE BLIND SPOT MONITOR SENSOR RH

NG

REPLACE OUTER MIRROR RH (OUTER REAR VIEW MIRROR INDICATOR RH)
