- Seat position restoring function does not operate when the condition is *2.
- Seat position restoring function does not operate when the condition is *3.
DESCRIPTION
When either the M1, M2 or M3 switch is pressed, the outer mirror control ECU assembly (for Driver Side) sends a switch signal to the main body ECU (multiplex network body ECU) via CAN communication. Then, the main body ECU (multiplex network body ECU) sends a recall request signal to the front power seat switch LH. The front power seat switch LH operates each motor to achieve each memorized position value.

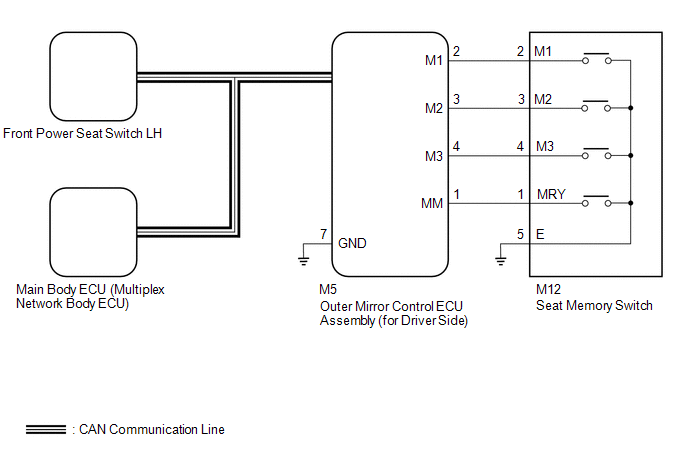

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
Click here
If a memorizing operation has failed, release all switches. The seat memory function does not operate unless the switches are released.
If a restoring operation has failed, release all switches. The seat memory restoring function does not operate unless the switches are released.
Click here
PROCEDURE
1. | CHECK FRONT POWER SEAT OPERATION |
(a) Check that each function of the power seat operates normally by using the front power seat switch LH.
Click here
OK:
Each function of the power seat operates normally using the front power seat switch LH.
NG | GO TO PROBLEM SYMPTOMS TABLE |
|
2. | CHECK SEAT POSITION MEMORY FUNCTION |
(a) Check that the seat position memory function.
Click here
OK:
Seat position memory function is normal.
NG | GO TO OTHER DIAGNOSIS PROCEDURE (Power Seat Position is not Memorized) |
|
3. | CHECK SEAT POSITION RESTORING FUNCTION |
(a) Under each of the following conditions, check that the seat position restoring function operates by pressing the M1, M2 or M3 switch.
Click here
Result | Proceed to |
---|---|
Seat position restoring function does not operate at all. | A |
Seat position restoring function does not operate when the condition is *1. | B |
| C |
B | GO TO STEP 7 |
C | GO TO STEP 8 |
|
4. | READ VALUE USING TECHSTREAM (SEAT MEMORY NO1, SEAT MEMORY NO2, SEAT MEMORY NO3) |
(a) Store a seat position in memory for each of the M1, M2 and M3 switches.
Click here
(b) Connect the Techstream to the DLC3.
(c) Turn the power switch on (IG).
(d) Turn the Techstream on.
(e) Enter the following menus: Body Electrical / Driver Seat / Data List.
(f) Read the Data List according to the display on the Techstream.
Body Electrical > Driver Seat > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
Seat Memory No1 | Seat position memorized with M1 switch | Mem or Not Mem | Mem: Memorized Not Mem: Not memorized | - |
Seat Memory No2 | Seat position memorized with M2 switch | Mem or Not Mem | Mem: Memorized Not Mem: Not memorized | - |
Seat Memory No3 | Seat position memorized with M3 switch | Mem or Not Mem | Mem: Memorized Not Mem: Not memorized | - |
Tester Display |
---|
Seat Memory No1 |
Seat Memory No2 |
Seat Memory No3 |
OK:
Mem appears on the Techstream screen.
NG | GO TO OTHER DIAGNOSIS PROCEDURE (Power Seat Position is not Memorized) |
|
5. | REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side) |
(a) Replace the outer mirror control ECU assembly (for Driver Side) with a new or known good one.
Click here
|
6. | CHECK SEAT POSITION MEMORY AND RESTORING FUNCTION |
(a) Check that the seat position memory and restoring function.
Click here
OK:
Seat position memory and restoring function operates normally.
OK | END (OUTER MIRROR CONTROL ECU ASSEMBLY [for Driver Side] WAS DEFECTIVE) |
NG | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
7. | READ VALUE USING TECHSTREAM (P SWITCH) |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Driver Seat / Data List.
(e) Read the Data List according to the display on the Techstream.
Body Electrical > Driver Seat > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
P Switch | Park state signal | ON or OFF | ON: Shift lever in P OFF: Shift lever in a position other than P | - |
Tester Display |
---|
P Switch |
OK:
The Techstream display changes correctly in response to the switch operation.
OK | REPLACE FRONT POWER SEAT SWITCH LH |
NG | GO TO HYBRID CONTROL SYSTEM |
8. | READ VALUE USING TECHSTREAM (FL DOOR COURTESY SW) |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Main Body / Data List.
(e) Read the Data List according to the display on the Techstream.
Body Electrical > Main Body > Data List Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
---|---|---|---|---|
FL Door Courtesy SW | Front door courtesy light switch assembly LH signal | ON or OFF | ON: Driver door open OFF: Driver door closed | - |
Tester Display |
---|
FL Door Courtesy SW |
OK:
The Techstream display changes correctly in response to the switch operation.
OK | REPLACE FRONT POWER SEAT SWITCH LH |
NG | GO TO LIGHTING SYSTEM (Door Courtesy Switch Circuit) |
