Lexus NX: Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

Click here

2. REMOVE REAR DECK FLOOR BOX

Click here

3. REMOVE DECK FLOOR BOX LH

Click here

4. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(a) Loosen the nut and disconnect the cable from the negative (-) auxiliary battery terminal.

6. REMOVE UPPER INSTRUMENT PANEL

Click here

7. REMOVE NO. 2 INSTRUMENT PANEL WIRE

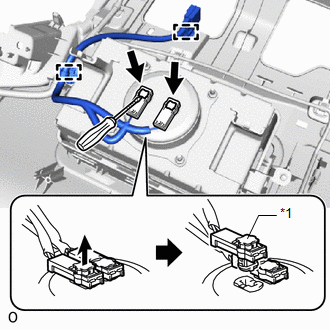

(a) Using a screwdriver, pull up and release the connector lock and disconnect the airbag connector.

HINT:

  • Use the same procedure to disconnect the airbag connector on the other side.
  • Tape the screwdriver tip before use.

(b) Detach the 2 wire harness clamps and remove the No. 2 instrument panel wire.

CAUTION:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

*1

Connector Lock

Protective Tape

8. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

CAUTION:

When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

(a) Remove the 2 screws.

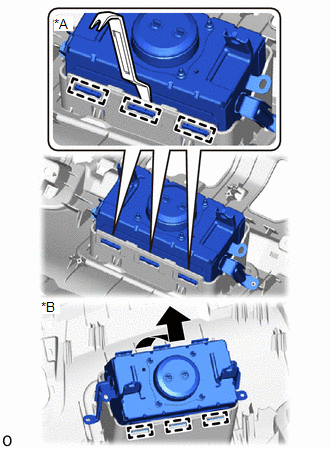

*A

Front of the Vehicle

*B

Rear of the Vehicle

(b) Insert moulding remover B into the side of the airbag door facing the front of the vehicle and bend moulding remover B to detach the 3 hooks.

(c) Pull the instrument panel passenger airbag assembly in the direction indicated by the arrow shown in the illustration to detach the 3 hooks on the side of the airbag door facing the rear of the vehicle and remove the instrument panel passenger airbag assembly.
