Lexus NX: Steering Position Sensor Malfunction (B2414)
DESCRIPTION
The headlight ECU sub-assembly LH receives steering angle signals from the steering sensor.
The headlight ECU sub-assembly LH outputs DTC B2414.
DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
B2414 | Steering Position Sensor Malfunction | Steering angle sensor malfunction | -
Headlight ECU sub-assembly LH
-
Steering sensor
|

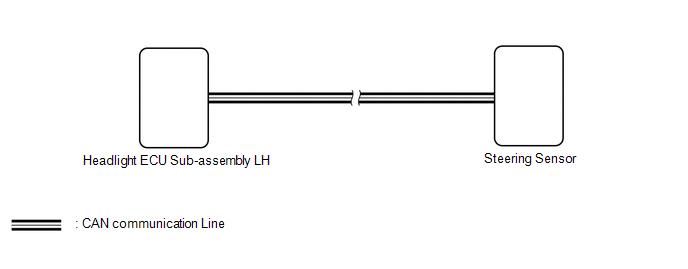

WIRING DIAGRAM
CAUTION / NOTICE / HINT
PROCEDURE
(a) Clear the DTCs.
Click here
Body Electrical > AFS > Clear DTCs
(b) Check for DTCs.
Click here
Body Electrical > AFS > Trouble Codes
OK:
DTC B2414 output does not occur.
NG | | |
2. | REPLACE STEERING SENSOR |
(a) Temporarily replace the steering sensor with a new or normally functioning one.
Click here
NEXT | | |
(a) Clear the DTCs.
Click here
Body Electrical > AFS > Clear DTCs
(b) Check for DTCs.
Click here
Body Electrical > AFS > Trouble Codes
OK:
DTC B2414 output does not occur.
OK | | END (STEERING SENSOR WAS DEFECTIVE) |
NG | | REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH |
