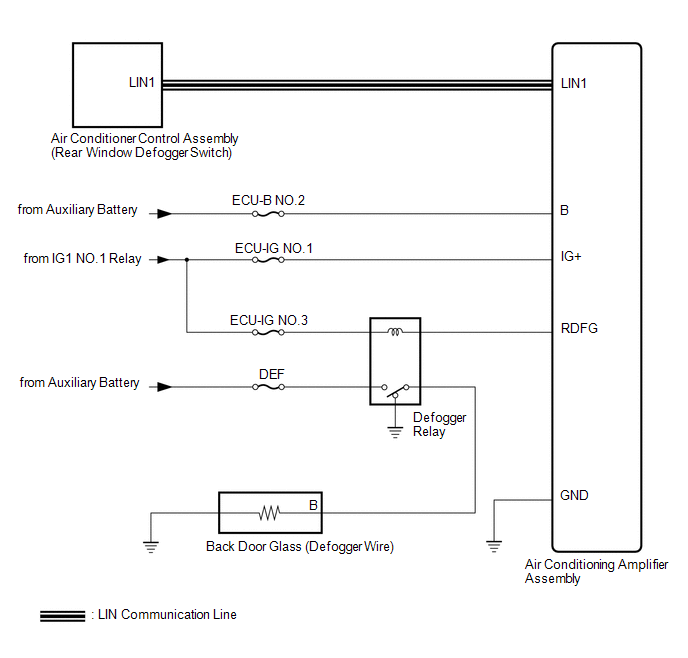

SYSTEM DIAGRAM
Communication Table | Transmitter | Receiver | Signal | Communication Method |
|---|---|---|---|
| Air Conditioning Control Assembly | Air Conditioning Amplifier Assembly | Rear window defogger switch signal | LIN |
