Lexus NX: Components

COMPONENTS

ILLUSTRATION

*1

DECK BOARD ASSEMBLY

*2

DECK FLOOR BOX LH

*3

NO. 3 DECK BOARD SUB-ASSEMBLY

*4

REAR DECK FLOOR BOX

*5

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

DECK FLOOR BOX RH

*2

NO. 1 TOOL BOX SUB-ASSEMBLY

*3

NO. 2 DECK BOARD SUB-ASSEMBLY

*4

NO. 2 TOOL BOX SUB-ASSEMBLY

*5

REAR FLOOR FINISH PLATE

*6

SPARE TIRE

*7

TONNEAU COVER ASSEMBLY

-

-

ILLUSTRATION

*1

CENTER PILLAR GARNISH ASSEMBLY LH

*2

COWL SIDE TRIM BOARD LH

*3

DOOR SCUFF PLATE ASSEMBLY LH

*4

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*5

FRONT PILLAR GARNISH ASSEMBLY LH

*6

FRONT SEAT OUTER BELT ASSEMBLY LH

*7

LOWER CENTER PILLAR GARNISH LH

*8

OUTER LAP BELT ANCHOR COVER

*9

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*10

REAR DOOR SCUFF PLATE LH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

CENTER PILLAR GARNISH ASSEMBLY RH

*2

COWL SIDE TRIM BOARD RH

*3

DOOR SCUFF PLATE ASSEMBLY RH

*4

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

*5

FRONT PILLAR GARNISH ASSEMBLY RH

*6

FRONT SEAT OUTER BELT ASSEMBLY RH

*7

LOWER CENTER PILLAR GARNISH RH

*8

OUTER LAP BELT ANCHOR COVER

*9

REAR DOOR OPENING TRIM WEATHERSTRIP RH

*10

REAR DOOR SCUFF PLATE RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*A

for Power Seat

-

-

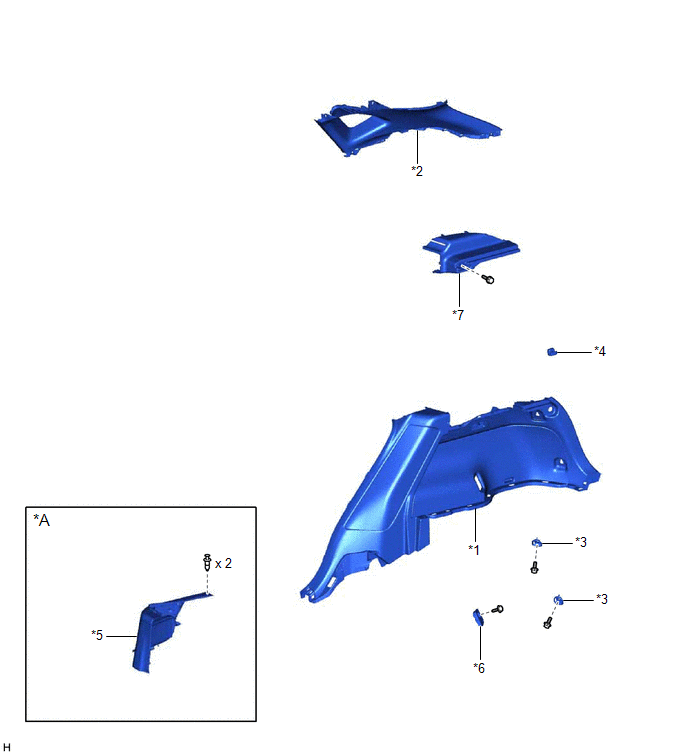

*1

DECK TRIM SIDE PANEL ASSEMBLY LH

*2

INNER ROOF SIDE GARNISH ASSEMBLY LH

*3

LUGGAGE HOLD BELT STRIKER ASSEMBLY

*4

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*5

NO. 3 BATTERY SERVICE COVER BOARD

*6

ROPE HOOK ASSEMBLY

*7

UPPER DECK TRIM SIDE BOARD LH

-

-

ILLUSTRATION

*A

for Power Seat

-

-

*1

DECK TRIM SIDE PANEL ASSEMBLY RH

*2

INNER ROOF SIDE GARNISH ASSEMBLY RH

*3

LUGGAGE HOLD BELT STRIKER ASSEMBLY

*4

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*5

NO. 2 BATTERY SERVICE COVER BOARD

*6

ROPE HOOK ASSEMBLY

*7

UPPER DECK TRIM SIDE BOARD RH

-

-

ILLUSTRATION

*1

ASSIST GRIP SUB-ASSEMBLY

*2

REAR ASSIST GRIP ASSEMBLY LH

*3

REAR ASSIST GRIP ASSEMBLY RH

*4

VISOR ASSEMBLY LH

*5

VISOR ASSEMBLY RH

*6

VISOR BRACKET COVER

*7

VISOR HOLDER

*8

ASSIST GRIP COVER

*9

CLIP

-

-

ILLUSTRATION

*A

for Normal Roof

*B

w/ Rain Sensor

*C

w/ Humidity Sensor

-

-

*1

MAP LIGHT ASSEMBLY

*2

NO. 1 FORWARD RECOGNITION COVER

*3

NO. 2 FORWARD RECOGNITION COVER

*4

PROTECTOR

*5

RAIN SENSOR COVER

*6

ROOF HEADLINING ASSEMBLY

*7

SEAT BELT ANCHOR COVER

*8

SPOT LIGHT ASSEMBLY (ROOM LIGHT)

ILLUSTRATION

*A

for Sliding Roof

*B

w/ Rain Sensor

*C

w/ Humidity Sensor

-

-

*1

MAP LIGHT ASSEMBLY

*2

NO. 1 FORWARD RECOGNITION COVER

*3

NO. 2 FORWARD RECOGNITION COVER

*4

PROTECTOR

*5

RAIN SENSOR COVER

*6

ROOF HEADLINING ASSEMBLY

*7

SEAT BELT ANCHOR COVER

*8

SPOT LIGHT ASSEMBLY (ROOM LIGHT)

ILLUSTRATION

*1

CURTAIN SHIELD AIRBAG ASSEMBLY LH

*2

CURTAIN SHIELD AIRBAG ASSEMBLY RH

*3

FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

*4

FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

*5

REAR NO. 2 SIDE RAIL SPACER LH

*6

REAR NO. 2 SIDE RAIL SPACER RH

*7

REAR SIDE RAIL SPACER LH

*8

REAR SIDE RAIL SPACER RH

*9

CLIP

*10

PIN

*11

CURTAIN SHIIELD AIRBAG SPACER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

ILLUSTRATION

*A

for Normal Roof

-

-

*1

CHILD RESTRAINT SEAT TETHER ANCHOR COVER

*2

FRONT ROOF HEADLINING SIDE PAD

*3

NO. 1 MICROPHONE CASE

*4

NO. 1 ROOF SILENCER PAD

*5

NO. 1 ROOF WIRE

*6

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*7

NO. 2 ROOF HEADLINING SUPPORT

*8

NO. 2 ROOF SILENCER PAD

*9

NO. 3 ROOF HEADLINING SUPPORT

*10

NO. 3 ROOF SILENCER PAD

*11

NO. 4 ROOF HEADLINING SUPPORT

*12

NO. 4 ROOF SILENCER PAD

*13

REAR ROOF SILENCER PAD

*14

ROOF HEADLINING END PAD

*15

ROOF HEADLINING PAD

*16

ROOF HEADLINING SUPPORT

*17

TELEPHONE MICROPHONE ASSEMBLY

*18

VANITY LIGHT ASSEMBLY

ILLUSTRATION

*A

for Sliding Roof

-

-

*1

CHILD RESTRAINT SEAT TETHER ANCHOR COVER

*2

NO. 1 MICROPHONE CASE

*3

NO. 1 ROOF WIRE

*4

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*5

NO. 3 ROOF HEADLINING SUPPORT

*6

NO. 4 ROOF HEADLINING SUPPORT

*7

REAR ROOF SILENCER PAD

*8

ROOF HEADLINING END PAD

*9

ROOF HEADLINING PAD

*10

TELEPHONE MICROPHONE ASSEMBLY

*11

VANITY LIGHT ASSEMBLY

-

-
