Lexus NX: Removal
REMOVAL
PROCEDURE
1. REMOVE REAR SEAT CUSHION ASSEMBLY
for Manual seat: Click here .gif)
for Power seat: Click here
2. REMOVE REAR DOOR SCUFF PLATE LH
Click here
3. REMOVE REAR DOOR SCUFF PLATE RH
Click here
4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)
Click here
5. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH (for Manual Seat)
Click here
6. REMOVE NO. 3 BATTERY SERVICE COVER BOARD
HINT:
If the message "Maintenance required for hybrid battery cooling parts at your dealer" is displayed on the multi-information display in the combination meter assembly, inspect the No. 3 battery service cover board after removing it.
Click here
| (a) Remove the 2 clips. |
|
(b) Detach the 2 claws and remove the No. 3 battery service cover board.

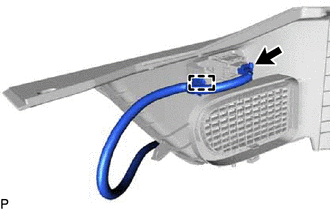

| (c) for Power Seat: Disconnect the wire harness clamp and power seat switch connector. |
|
7. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
HINT:
Use the same procedure as for the No. 2 battery service cover board.
