Lexus NX Service Manual / Engine & Hybrid System / Cruise Control / Cruise Control Main Switch / Removal

REMOVAL

PROCEDURE

1. REMOVE HORN BUTTON ASSEMBLY

Click here

2. REMOVE CRUISE CONTROL MAIN SWITCH

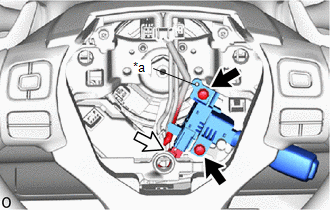

(a) Remove the 2 screws.

*a

Guide

(b) Detach the guide.

(c) Disconnect the connector and remove the cruise control main switch.
