Lexus NX: Removal
REMOVAL
PROCEDURE
1. TABLE OF BOLT, SCREW AND CLIP
HINT:
All bolts, screws, and clips relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.
2. DISABLE AUTOAWAY/RETURN FUNCTION (for Power Tilt and Power Telescopic Steering Column)
(a) Disable the autoaway/return function by changing the customize parameter.
Click here .gif)
CAUTION:
Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.
HINT:
Performing the above operation causes the autoaway/return function to be disabled when the power switch is turned off.
(b) Turn the power switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
(c) Turn the power switch off.
3. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY
Click here
4. REMOVE REAR DECK FLOOR BOX
Click here
5. REMOVE DECK FLOOR BOX LH
Click here
6. PRECAUTION
CAUTION:
Be sure to read Precoution thoroughly before serving.
Click here
NOTICE:
After turning the power switch off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason. it may cause a serious accident.
8. REMOVE CONSOLE ARMREST ASSEMBLY
(a) Remove the console armrest lid.
(b) Put protective tape around the console armrest assembly.
 | Place Hand Here |
.png) | Remove in this Direction |
.png) | Protective Tape |
(c) Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the 2 clips.
NOTICE:
Before attempting to remove the clip on the front end of the console armrest assembly, make sure to first remove the clip on the rear end. Otherwise, the clip on the rear end may become damaged.

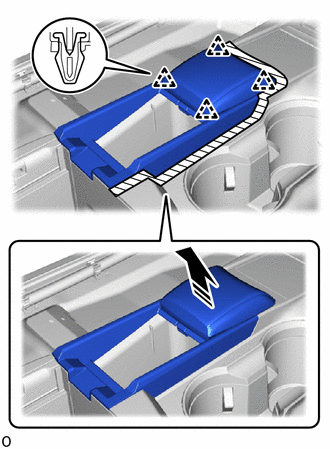

(d) Detach the 4 clips and remove the console armrest assembly.
| | Remove in this Direction |
9. REMOVE UPPER REAR CONSOLE PANEL
(a) Put protective tape around the upper rear console panel.
| | Protective Tape |
(b) Detach the 2 clips and remove the upper rear console panel.
10. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH
(a) Put protective tape around the upper No. 2 console panel garnish.
| | Protective Tape |
(b) Using moulding remover B, detach the 6 clips and guide and remove the upper No. 2 console panel garnish.
11. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH
(a) Put protective tape around the upper No. 1 console panel garnish.
| | Protective Tape |
(b) Using moulding remover B, detach the 7 clips and guide and remove the upper No. 1 console panel garnish.
12. REMOVE INSTRUMENT SIDE PANEL LH
(a) Put protective tape around the instrument side panel LH.
| | Protective Tape |
(b) Using moulding remover B, detach the 5 clips and 3 guides.
(c) Disconnect the connector and remove the instrument side panel LH.
13. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Put protective tape around the No. 1 instrument panel safety pad sub-assembly.
| | Protective Tape |
(b) Using moulding remover B, detach the 8 clips.
(c) Disconnect the connector and remove the No. 1 instrument panel safety pad sub-assembly.
14. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
| (a) Remove the 2 screws <A> or <B>. |
|
(b) Detach the 2 claws and 2 guides.
(c) Disconnect the connector, detach the clamp and remove the No. 1 instrument panel under cover sub-assembly.
15. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
(a) Put protective tape around the lower No. 1 instrument panel finish panel.
| *a | Screws <A> or <B> |
| | Protective Tape |
(b) Remove the screw <A> or <B>.
(c) Using moulding remover B, detach the 13 clips and 4 claws.
(d) Disconnect the connectors, detach the clamp and remove the lower No. 1 instrument panel finish panel.
16. REMOVE NO. 1 SWITCH HOLE BASE
(a) Put protective tape around the No. 1 switch hole base.
| | Protective Tape |
(b) Using moulding remover B, detach the 6 clips.
(c) Disconnect the connector and remove the No. 1 switch hole base.
17. REMOVE INSTRUMENT SIDE PANEL RH
(a) Put protective tape around the instrument side panel RH.
| | Protective Tape |
(b) Using moulding remover B, detach the 5 clips and 3 guides.
(c) Disconnect the connector and remove the instrument side panel RH.
18. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Put protective tape around the No. 2 instrument panel safety pad sub-assembly.
| *1 | No. 2 Instrument Panel Safety Pad Sub-assembly |
| *2 | No. 2 Instrument Cluster Finish Panel Garnish |
| | Protective Tape |
(b) Place your hand as shown in the illustration, and then pull the No. 2 instrument panel safety pad sub-assembly in the direction indicated by the arrow shown in the illustration to detach the 12 clips and remove the No. 2 instrument panel safety pad sub-assembly together with the No. 2 instrument cluster finish panel garnish.
19. REMOVE INSTRUMENT PANEL FINISH PLATE
.png) | Remove in this Direction (1) |
 | Remove in this Direction (2) |
(a) Pull in the removal direction (1) and detach the 6 clips.
(b) Lift up in the removal direction (2) and remove the instrument panel finish plate.
20. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET
Click here
21. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
(a) Put protective tape around the center instrument cluster finish panel assembly.
| | Protective Tape |
(b) Place your hand as shown in the illustration, and then pull the center instrument cluster finish panel assembly in the direction indicated by the arrow shown in the illustration to detach the 15 clips and remove the center instrument cluster finish panel assembly.
22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
(a) Put protective tape around the instrument cluster finish panel sub-assembly.
| *a | Clip <C> |
| | Protective Tape |
(b) Remove the 2 clips <C>.
(c) Using a moulding remover B, detach the 5 clips and 4 claws.
(d) Disconnect the connector and remove the instrument cluster finish panel sub-assembly.
23. REMOVE COMBINATION METER ASSEMBLY
Click here
24. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
| (a) Detach the claw and disconnect the glove compartment door stopper sub-assembly. |
|
(b) Slightly bend the upper part of the glove compartment door assembly to release the 2 stoppers and open the glove compartment door assembly until it is horizontal.
| (c) Pull the glove compartment door assembly toward the rear of the vehicle to detach the 2 hinges and remove it. NOTICE: When removing the glove compartment door assembly, make sure to pull horizontally. Pulling the glove compartment door assembly upward causes the hinges to become loose. |
|
25. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
(a) Disconnect the front door opening trim weatherstrip LH so that the front pillar garnish assembly LH can be removed.
26. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
(a) Disconnect the front door opening trim weatherstrip RH so that the front pillar garnish assembly RH can be removed.
27. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH
Click here
28. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH
Click here
29. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
(a) Put protective tape around the No. 1 instrument panel speaker panel sub-assembly.
| | Protective Tape |
(b) Using a screwdriver, detach the 2 clips, 2 claws and 3 guides and remove the No. 1 instrument panel speaker panel sub-assembly.
HINT:
Tape the screwdriver tip before use.
30. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
(a) Put protective tape around the No. 2 instrument panel speaker panel sub-assembly.
| | Protective Tape |
(b) Using a screwdriver, detach the 2 clips, 2 claws and 3 guides and remove the No. 2 instrument panel speaker panel sub-assembly.
HINT:
Tape the screwdriver tip before use.
31. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY
(a) Put protective tape around the No. 1 speaker opening cover assembly.
| | Protective Tape |
(b) Using a screwdriver, detach the 4 clips and claw and remove the No. 1 speaker opening cover assembly.
HINT:
Tape the screwdriver tip before use.
32. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
HINT:
Use the same procedure for both front No. 2 speaker assemblies.
NOTICE:
Do not touch the cone part of the front No. 2 speaker assembly.
| (a) Remove the 2 screws. |
|
(b) Disconnect the connector and remove the front No. 2 speaker assembly.
33. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
Click here
34. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
| (a) Pull and slide the lock slider in the direction indicated by the arrow to release the connector lock and disconnect the passenger airbag connector. NOTICE: When handling the passenger airbag connector, take care not to damage the airbag wire harness. |
|
(b) Disconnect the connectors.
(c) Remove the 2 bolts <D> and screw <A> or <B>.
(d) Remove the 2 passenger airbag installation bolts <E>.
(e) Detach the 7 clips and 5 guides and remove the upper instrument panel sub-assembly.
| *A | w/o Headup Display | *B | w/ Headup Display |
| *a | Passenger Airbag Connector | *b | Bolt <D> |
| *c | Screw <A> or <B> | *d | Passenger Airbag Installation Bolt <E> |
