Lexus NX: Removal
REMOVAL
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
PROCEDURE
1. REMOVE REAR SEAT ASSEMBLY
Click here .gif)
2. REMOVE REAR SEATBACK COVER
Click here
3. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (for RH Side)
Click here
4. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
Click here
5. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH (for RH Side)
Click here
6. REMOVE REAR SEAT CUSHION MOULDING RH (for RH Side)
Click here
7. REMOVE REAR SEAT CUSHION MOULDING RH (for RH Side)
Click here
8. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY (for RH Side)
Click here
9. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)
Click here
10. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH (REAR SEATBACK HEATER ASSEMBLY RH) (for RH Side)

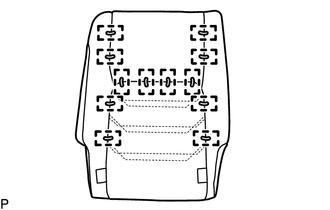

| (a) Remove the 12 hog rings to remove the separate type rear seatback cover RH (rear seatback heater assembly RH) from the separate type rear seatback pad RH. |
|
.png)
11. REMOVE REAR SEAT INNER BELT ASSEMBLY LH (for LH Side)
Click here
12. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
Click here
13. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY (for LH Side)
Click here
14. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY LH (for LH Side)
Click here
15. REMOVE REAR SEAT ARMREST HOLE COVER (for LH Side)
Click here
16. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for LH Side)
Click here
17. REMOVE NO. 1 SEAT ARMREST ASSEMBLY (for LH Side)
Click here
18. REMOVE CENTER SEAT HINGE COVER (for LH Side)
Click here
19. REMOVE CENTER ARMREST HINGE COVER (for LH Side)
Click here
20. REMOVE NO. 1 SEATBACK COVER (for LH Side)
Click here
21. REMOVE REAR SEAT CUSHION MOULDING LH (for LH Side)
Click here
22. REMOVE REAR SEAT CUSHION MOULDING LH (for LH Side)
Click here
23. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY (for LH Side)
Click here
24. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)
Click here
25. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH (REAR SEATBACK HEATER ASSEMBLY LH) (for LH Side)
| (a) Remove the 12 hog rings to remove the separate type rear seatback cover LH (rear seatback heater assembly LH) from the separate type rear seatback pad LH. |
|
.png)
