Lexus NX: LDA (Lane Departure Alert with steering control)

When driving on highways and freeways with white (yellow) lane lines, this function alerts the driver when the vehicle might depart from its lane or course* and provides assistance by operating the steering wheel to keep the vehicle in its lane or course*.

The LDA system recognizes white (yellow) lane lines or a course* using the front camera. Additionally, it detects preceding vehicles using the front camera and radar.

*: Boundary between asphalt and the side of the road, such as grass, soil, or a curb

WARNING

■Before using LDA system

• Do not rely solely upon the LDA system.

  The LDA system does not automatically drive the vehicle or reduce the amount of attention that must be paid to the area in front of the vehicle.

  The driver must always assume full responsibility for driving safely by paying careful attention to the surrounding conditions and operating the steering wheel to correct the path of the vehicle. Also, the driver must take adequate breaks when fatigued, such as from driving for a long period of time.

• Failure to perform appropriate driving operations and pay careful attention may lead to an accident, resulting in death or serious injury.
• When not using the LDA system, use the LDA switch to turn the system off.

■Situations unsuitable for LDA system In the following situations, use the LDA switch to turn the system off. Failure to do so may lead to an accident, resulting in death or serious injury.

• Vehicle is driven on a road surface which is slippery due to rainy weather, fallen snow, freezing, etc.
• Vehicle is driven on a snow-covered road.
• White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
• A spare tire, tire chains, etc. are equipped.
• When the tires have been excessively worn, or when the tire inflation pressure is low.
• When tires of a size other than specified are installed.
• Vehicle is driven in traffic lanes other than that highways and freeways.
• When your vehicle is towing a trailer or during emergency towing.

■Preventing LDA system malfunctions and operations performed by mistake

• Do not modify the headlights or place stickers, etc. on the surface of the lights.
• Do not modify the suspension, etc. If the suspension, etc. needs to be replaced, contact your Lexus dealer.
• Do not install or place anything on the hood or grille. Also, do not install a grille guard (bull bars, kangaroo bar, etc.).
• If your windshield needs repairs, contact your Lexus dealer.

■Conditions in which functions may not operate properly In the following situations, the functions may not operate properly and the vehicle may depart from its lane. Drive safely by always paying careful attention to your surroundings and operate the steering wheel to correct the path of the vehicle without relying solely on the functions.

• Vehicle is being driven around a sharp curve.
• Objects or patterns that could be mistaken for white (yellow) lines are present on the side of the road (guardrails, reflective poles, etc.).

• Vehicle is driven where the road diverges, merges, etc.

• Repair marks of asphalt, white (yellow) lines, etc. are present due to road repair.

• There are shadows on the road that run parallel with, or cover, the white (yellow) lines.
• The vehicle is driven in an area without white (yellow) lines, such as in front of a tollgate or checkpoint, or at an intersection, etc.
• The white (yellow) lines are cracked, botts' dots, raised pavement marker or stones are present.
• The white (yellow) lines cannot be seen or are difficult to see due to sand, etc.
• The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
• The traffic lines are yellow (which may be more difficult to recognize than lines that are white).
• The white (yellow) lines cross over a curb, etc.
• The vehicle is driven on a bright surface, such as concrete.
• If the edge of the road is not clear or straight.
• The vehicle is driven on a surface that is bright due to reflected light, etc.
• The vehicle is driven in an area where the brightness changes suddenly, such as at the entrances and exits of tunnels, etc.
• Light from the headlights of an oncoming vehicle, the sun, etc. enters the camera.
• The vehicle is driven on a slope.
• The vehicle is driven on a road which tilts left or right, or a winding road.
• The vehicle is driven on an unpaved or rough road.
• The traffic lane is excessively narrow or wide.
• The vehicle is extremely tilted due to carrying heavy luggage or having improper tire pressure.
• The distance to the preceding vehicle is extremely short.
• The vehicle is moving up and down a large amount due to road conditions during driving (poor roads or road seams).
• When driving in a tunnel or at night with the headlights off or when a headlight is dim due to its lens being dirty or it being misaligned.
• The vehicle is struck by a crosswind.
• The vehicle has just changed lanes or crossed an intersection.
• Tires which differ by structure, manufacturer, brand or tread pattern are used.
• Snow tires, etc. are equipped.

Functions included in LDA system

■ Lane departure alert function When the system determines that the vehicle might depart from its lane or course*, a warning is displayed on the multi-information display, and either a warning buzzer will sound or the steering wheel will vibrate to alert the driver.

When the warning buzzer sounds or the steering wheel vibrates, check the area around your vehicle and carefully operate the steering wheel to move the vehicle back to the center of the lane.

*: Boundary between asphalt and the side of the road, such as grass, soil, or a curb

■ Steering assist function When the system determines that the vehicle might depart from its lane or course*, the system provides assistance as necessary by operating the steering wheel in small amounts for a short period of time to keep the vehicle in its lane.

If the system detects that the steering wheel has not been operated for a fixed amount of time or the steering wheel is not being firmly gripped, a warning is displayed on the multi-information display and the function is temporarily canceled.

*: Boundary between asphalt and the side of the road, such as grass, soil, or a curb

■ Vehicle sway warning function When the vehicle is swaying within a lane, the warning buzzer will sound and a message will be displayed on the multi-information display to alert the driver.

Turning LDA system on

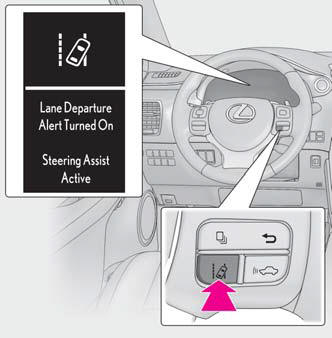

Press the LDA switch to turn the LDA system on.

The LDA indicator illuminates and a message is displayed on the multi-information display.

Press the LDA switch again to turn the LDA system off.

When the LDA system is turned on or off, operation of the LDA system continues in the same condition the next time the hybrid system is started.

Indications on multi-information display

1. LDA indicator

The illumination condition of the indicator informs the driver of the system operation status.

Illuminated in white: LDA system is operating.

Illuminated in green: Steering wheel assistance of the steering assist function is operating.

Flashing in orange: Lane departure alert function is operating.

2. Operation display of steering wheel operation support

Displayed when the multi-information display is switched to the driving assist system information screen.

Indicates that steering wheel assistance of the steering assist function is operating.

3. Lane departure alert function display

Displayed when the multi-information display is switched to the driving assist system information screen.

Inside of displayed lines is white

Indicates that the system is recognizing white (yellow) lines or a course*. When the vehicle departs from its lane, the white line displayed on the side the vehicle departs from flashes orange.

Inside of displayed lines is black

Indicates that the system is not able to recognize white (yellow) lines or a course* or is temporarily canceled.

*: Boundary between asphalt and the side of the road, such as grass, soil, or a curb

■Operation conditions of each function

• Lane departure alert function

This function operates when all of the following conditions are met.

• LDA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• System recognizes white (yellow) lane lines or a course*. (When a white [yellow] line or course* is recognized on only one side, the system will operate only for the  recognized side.)
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated.
• Vehicle is not being driven around a sharp curve.
• No system malfunctions are detected.

*: Boundary between asphalt and the side of the road, such as grass, soil, or a curb

• Steering assist function

This function operates when all of the following conditions are met in addition to the operation conditions for the lane departure alert function.

• Setting for "Steering Assist" in of the multi-information display is set to "On".
• Vehicle is not accelerated or decelerated by a fixed amount or more.
• Steering wheel is not operated with a steering force level suitable for changing lanes.
• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.
• Hands off steering wheel warning is not displayed.

• Vehicle sway warning function

This function operates when all of the following conditions are met.

• Setting for "Sway Warning" in of the multi-information display is set to "On".
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected.

■Temporary cancelation of functions When operation conditions are no longer met, a function may be temporarily canceled.

However, when the operation conditions are met again, operation of the function is automatically restored.

■Steering assist function

• Depending on the vehicle speed, lane departure situation, road conditions, etc., the driver may not feel the function is operating or the function may not operate at all.
• The steering control of the function is overridden by the driver's steering wheel operation.
• Do not attempt to test the operation of the steering assist function.

■Lane departure alert function

• The warning buzzer may be difficult to hear due to external noise, audio playback, etc. Also, it may be difficult to feel steering wheel vibrations due to the road conditions, etc.
• If the edge of the course* is not clear or straight, the lane departure alert function may not operate.
• Do not attempt to test the operation of the lane departure alert function.

*: Boundary between asphalt and the side of the road, such as grass, soil, or a curb

■Hands off steering wheel warning In the following situations, a warning message urging the driver to hold the steering wheel and the symbol shown in the illustration are displayed on the multi-information display to warn the driver. The warning stops when the system determines that the driver holds the steering wheel. Always keep your hands on the steering wheel when using this system, regardless of warnings.

• When the system determines that the driver is driving without holding the steering wheel while the system is operating

If the driver continues to keep their hands off of the steering wheel, the buzzer sounds, the driver is warned and the function is temporarily canceled. This warning also operates in the same way when the driver continuously operates the steering wheel only a small amount.

The buzzer also sounds even if the alert type is set to .

• When the system determines that the vehicle may not turn and instead depart from its lane while driving around a curve

Depending on the vehicle condition and road conditions, the warning may not operate.

Also, if the system determines that the vehicle is driving around a curve, warnings will occur earlier than during straight-lane driving.

• When the system determines that the driver is driving without holding the steering wheel while the steering wheel assist of the steering assist function is operating

If the driver continues to keep their hands off of the steering wheel and the steering wheel assist is operating, the buzzer sounds and the driver is warned. Each time the buzzer sounds, the continuing time of the buzzer becomes longer.

The buzzer also sounds even if the alert type is set to .

■Vehicle sway warning function When the system determines that the vehicle is swaying while the vehicle sway warning function is operating, a buzzer sounds and a warning message urging the driver to rest and the symbol shown in the illustration are simultaneously displayed on the multi-information display.

Depending on the vehicle and road conditions, the warning may not operate.

■Warning message If the following warning message is displayed on the multi-information display and the LDA indicator illuminates in orange, follow the appropriate troubleshooting procedure.

Also, if a different warning message is displayed, follow the instructions displayed on the screen.

• "Lane Departure Alert Malfunction Visit Your Dealer"

The system may not be operating properly.

Have the vehicle inspected by your Lexus dealer.

• "Lane Departure Alert Unavailable"

The system is temporarily canceled due to a malfunction in a sensor other than the front camera. Turn the LDA system off, wait for a little while, and then turn the LDA system back on.

• "Lane Departure Alert Unavailable at Current Speed"

The function cannot be used as the vehicle speed exceeds the LDA operation range.

Drive slower.

• "Lane Departure Alert Unavailable Below Approx 50km/h"

The LDA system cannot be used as the vehicle speed is less than approximately 32 mph (50 km/h). Drive the vehicle at approximately 32 mph (50 km/h) or more.

■Customization Function settings can be changed.
